ROS2-Humble Guide - Tutorial - Beginner: CLI Tools¶
Last Updated: Jan 03, 2024
I Configuring environment¶
Goal: This tutorial will show you how to prepare your ROS 2 environment.
Background¶
ROS 2 relies on the notion of combining workspaces using the shell environment. “Workspace” is a ROS term for the location on your system where you’re developing with ROS 2. The core ROS 2 workspace is called the underlay. Subsequent local workspaces are called overlays. When developing with ROS 2, you will typically have several workspaces active concurrently.
Combining workspaces makes developing against different versions of ROS 2, or against different sets of packages, easier. It also allows the installation of several ROS 2 distributions (or “distros”, e.g. Dashing and Eloquent) on the same computer and switching between them.
This is accomplished by sourcing setup files every time you open a new shell, or by adding the source command to your shell startup script once. Without sourcing the setup files, you won’t be able to access ROS 2 commands, or find or use ROS 2 packages. In other words, you won’t be able to use ROS 2.
Prerequisites¶
Before starting these tutorials, install ROS 2 by following the instructions on the ROS 2 Installation page.
The commands used in this tutorial assume you followed the binary packages installation guide for your operating system (Debian packages for Linux). You can still follow along if you built from source, but the path to your setup files will likely be different. You also won’t be able to use the sudo apt install ros-
If you are using Linux or macOS, but are not already familiar with the shell, this tutorial will help.
Tasks¶
1 Source the setup file¶
You will need to run this command on every new shell you open to have access to the ROS 2 commands, like so:
Note
The exact command depends on where you installed ROS 2. If you’re having problems, ensure the file path leads to your installation.
2 Add sourcing to your shell startup script¶
If you don’t want to have to source the setup file every time you open a new shell (skipping task 1), then you can add the command to your shell startup script:
Only for PowerShell users, create a folder in ‘My Documents’ called ‘WindowsPowerShell’. Within ‘WindowsPowerShell’, create file ‘Microsoft.PowerShell_profile.ps1’. Inside the file, paste:
PowerShell will request permission to run this script everytime a new shell is opened. To avoid that issue you can run:
To undo this, remove the new ‘Microsoft.PowerShell_profile.ps1’ file.
3 Check Environment Variables¶
Sourcing ROS 2 setup files will set several environment variables necessary for operating ROS 2. If you ever have problems finding or using your ROS 2 packages, make sure that your environment is properly set up using the following command:
Check that variables like ROS_DISTRO and ROS_VERSION are set.
If the environment variables are not set correctly, return to the ROS 2 package installation section of the installation guide you followed.[The ROS_DOMAIN_ID variable]
See the domain ID article for details on ROS domain IDs.
Once you have determined a unique integer for your group of ROS 2 nodes, you can set the environment variable with the following command:
To maintain this setting between shell sessions, you can add the command to your shell startup script:
To maintain this setting between shell sessions, you can add the command to your shell startup script:
[The ROS_LOCALHOST_ONLY variable]
By default, ROS 2 communication is not limited to localhost. ROS_LOCALHOST_ONLY environment variable allows you to limit ROS 2 communication to localhost only. This means your ROS 2 system, and its topics, services, and actions will not be visible to other computers on the local network. Using ROS_LOCALHOST_ONLY is helpful in certain settings, such as classrooms, where multiple robots may publish to the same topic causing strange behaviors. You can set the environment variable with the following command:
To maintain this setting between shell sessions, you can add the command to your shell startup script:
Summary¶
The ROS 2 development environment needs to be correctly configured before use. This can be done in two ways: either sourcing the setup files in every new shell you open, or adding the source command to your startup script.
If you ever face any problems locating or using packages with ROS 2, the first thing you should do is check your environment variables and ensure they are set to the version and distro you intended.
II Using turtlesim, ros2, and rqt¶
Goal: Install and use the turtlesim package and rqt tools to prepare for upcoming tutorials.
Background¶
Turtlesim is a lightweight simulator for learning ROS 2. It illustrates what ROS 2 does at the most basic level to give you an idea of what you will do with a real robot or a robot simulation later on.
The ros2 tool is how the user manages, introspects, and interacts with a ROS system. It supports multiple commands that target different aspects of the system and its operation. One might use it to start a node, set a parameter, listen to a topic, and many more. The ros2 tool is part of the core ROS 2 installation.
rqt is a graphical user interface (GUI) tool for ROS 2. Everything done in rqt can be done on the command line, but rqt provides a more user-friendly way to manipulate ROS 2 elements.
This tutorial touches upon core ROS 2 concepts, like nodes, topics, and services. All of these concepts will be elaborated on in later tutorials; for now, you will simply set up the tools and get a feel for them.
Prerequisites¶
~
Tasks¶
1 Install turtlesim¶
As always, start by sourcing your setup files in a new terminal, as described in the previous tutorial.
Install the turtlesim package for your ROS 2 distro:
As long as the archive you installed ROS 2 from contains the ros_tutorials repository, you should already have turtlesim installed.
As long as the archive you installed ROS 2 from contains the ros_tutorials repository, you should already have turtlesim installed.
Check that the package is installed:
The above command should return a list of turtlesim’s executables:2 Start turtlesim¶
To start turtlesim, enter the following command in your terminal:
The simulator window should appear, with a random turtle in the center.In the terminal, under the command, you will see messages from the node:
[INFO] [turtlesim]: Starting turtlesim with node name /turtlesim
[INFO] [turtlesim]: Spawning turtle [turtle1] at x=[5.544445], y=[5.544445], theta=[0.000000]
3 Use turtlesim¶
Open a new terminal and source ROS 2 again.
Now you will run a new node to control the turtle in the first node:
At this point you should have three windows open: a terminal running turtlesim_node, a terminal running turtle_teleop_key and the turtlesim window. Arrange these windows so that you can see the turtlesim window, but also have the terminal running turtle_teleop_key active so that you can control the turtle in turtlesim.Use the arrow keys on your keyboard to control the turtle. It will move around the screen, using its attached “pen” to draw the path it followed so far.
Note
Pressing an arrow key will only cause the turtle to move a short distance and then stop. This is because, realistically, you wouldn’t want a robot to continue carrying on an instruction if, for example, the operator lost the connection to the robot
You can see the nodes, and their associated topics, services, and actions, using the list subcommands of the respective commands:
You will learn more about these concepts in the coming tutorials. Since the goal of this tutorial is only to get a general overview of turtlesim, you will use rqt to call some of the turtlesim services and interact with turtlesim_node.4 Install rqt¶
Open a new terminal to install rqt and its plugins:
The standard archive for installing ROS 2 on macOS contains rqt and its plugins, so you should already have rqt installed.
The standard archive for installing ROS 2 on Windows contains rqt and its plugins, so you should already have rqt installed.
To run rqt
5 Use rqt¶
When running rqt for the first time, the window will be blank. No worries; just select Plugins > Services > Service Caller from the menu bar at the top.
Note
It may take some time for rqt to locate all the plugins. If you click on Plugins but don’t see Services or any other options, you should close rqt and enter the command rqt --force-discover in your terminal.
Use the refresh button to the left of the Service dropdown list to ensure all the services of your turtlesim node are available.
Click on the Service dropdown list to see turtlesim’s services, and select the /spawn service.
[Try the spawn service] Let’s use rqt to call the /spawn service. You can guess from its name that /spawn will create another turtle in the turtlesim window.
Give the new turtle a unique name, like turtle2, by double-clicking between the empty single quotes in the Expression column. You can see that this expression corresponds to the value of name and is of type string.
Next enter some valid coordinates at which to spawn the new turtle, like x = 1.0 and y = 1.0.
Note
If you try to spawn a new turtle with the same name as an existing turtle, like the default turtle1, you will get an error message in the terminal running turtlesim_node:
To spawn turtle2, you then need to call the service by clicking the Call button on the upper right side of the rqt window.
If the service call was successful, you should see a new turtle (again with a random design) spawn at the coordinates you input for x and y.
If you refresh the service list in rqt, you will also see that now there are services related to the new turtle, /turtle2/..., in addition to /turtle1/....
[Try the set_pen service]
Now let’s give turtle1 a unique pen using the /set_pen service:
The values for r, g and b, which are between 0 and 255, set the color of the pen turtle1 draws with, and width sets the thickness of the line.
To have turtle1 draw with a distinct red line, change the value of r to 255, and the value of width to 5. Don’t forget to call the service after updating the values.
If you return to the terminal where turtle_teleop_key is running and press the arrow keys, you will see turtle1’s pen has changed.
You’ve probably also noticed that there’s no way to move turtle2. That’s because there is no teleop node for turtle2.
6 Remapping¶
ou need a second teleop node in order to control turtle2. However, if you try to run the same command as before, you will notice that this one also controls turtle1. The way to change this behavior is by remapping the cmd_vel topic.
In a new terminal, source ROS 2, and run:
Now, you can move turtle2 when this terminal is active, and turtle1 when the other terminal running turtle_teleop_key is active.
7 Close turtlesim¶
To stop the simulation, you can enter Ctrl + C in the turtlesim_node terminal, and q in the turtle_teleop_key terminals.
Summary¶
Using turtlesim and rqt is a great way to learn the core concepts of ROS 2.
III Understanding nodes¶
Goal: Learn about the function of nodes in ROS 2, and the tools to interact with them.
Background¶
1 The ROS 2 graph¶
Over the next few tutorials, you will learn about a series of core ROS 2 concepts that make up what is referred to as the “ROS (2) graph”.
The ROS graph is a network of ROS 2 elements processing data together at the same time. It encompasses all executables and the connections between them if you were to map them all out and visualize them.
2 Nodes in ROS 2¶
Each node in ROS should be responsible for a single, modular purpose, e.g. controlling the wheel motors or publishing the sensor data from a laser range-finder. Each node can send and receive data from other nodes via topics, services, actions, or parameters.
A full robotic system is comprised of many nodes working in concert. In ROS 2, a single executable (C++ program, Python program, etc.) can contain one or more nodes.
Prerequisites¶
The previous tutorial shows you how to install the turtlesim package used here.
As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 ros2 run¶
the command ros2 run launches an executable from a package.
Here, the package name is turtlesim and the executable name is turtlesim_node.
We still don’t know the node name, however. You can find node names by using ros2 node list
2 ros2 node list¶
ros2 node list will show you the names of all running nodes. This is especially useful when you want to interact with a node, or when you have a system running many nodes and need to keep track of them.
Open a new terminal while turtlesim is still running in the other one, and enter the following command:
The terminal will return the node name: Open another new terminal and start the teleop node with the command: Here, we are referring to the turtlesim package again, but this time we target the executable named turtle_teleop_key.Return to the terminal where you ran ros2 node list and run it again. You will now see the names of two active nodes:
[2.1 Remapping] Remapping allows you to reassign default node properties, like node name, topic names, service names, etc., to custom values. In the last tutorial, you used remapping on turtle_teleop_key to change the cmd_vel topic and target turtle2.
Now, let’s reassign the name of our /turtlesim node. In a new terminal, run the following command:
Since you’re calling ros2 run on turtlesim again, another turtlesim window will open. However, now if you return to the terminal where you ran ros2 node list, and run it again, you will see three node names:3 ros2 node info¶
Now that you know the names of your nodes, you can access more information about them with:
To examine your latest node, my_turtle, run the following command:
ros2 node info returns a list of subscribers, publishers, services, and actions. i.e. the ROS graph connections that interact with that node. The output should look like this:
/my_turtle
Subscribers:
/parameter_events: rcl_interfaces/msg/ParameterEvent
/turtle1/cmd_vel: geometry_msgs/msg/Twist
Publishers:
/parameter_events: rcl_interfaces/msg/ParameterEvent
/rosout: rcl_interfaces/msg/Log
/turtle1/color_sensor: turtlesim/msg/Color
/turtle1/pose: turtlesim/msg/Pose
Service Servers:
/clear: std_srvs/srv/Empty
/kill: turtlesim/srv/Kill
/my_turtle/describe_parameters: rcl_interfaces/srv/DescribeParameters
/my_turtle/get_parameter_types: rcl_interfaces/srv/GetParameterTypes
/my_turtle/get_parameters: rcl_interfaces/srv/GetParameters
/my_turtle/list_parameters: rcl_interfaces/srv/ListParameters
/my_turtle/set_parameters: rcl_interfaces/srv/SetParameters
/my_turtle/set_parameters_atomically: rcl_interfaces/srv/SetParametersAtomically
/reset: std_srvs/srv/Empty
/spawn: turtlesim/srv/Spawn
/turtle1/set_pen: turtlesim/srv/SetPen
/turtle1/teleport_absolute: turtlesim/srv/TeleportAbsolute
/turtle1/teleport_relative: turtlesim/srv/TeleportRelative
Service Clients:
Action Servers:
/turtle1/rotate_absolute: turtlesim/action/RotateAbsolute
Action Clients:
You will learn more about the ROS graph connection concepts including the message types in the upcoming tutorials.
Summary¶
A node is a fundamental ROS 2 element that serves a single, modular purpose in a robotics system.
In this tutorial, you utilized nodes created in the turtlesim package by running the executables turtlesim_node and turtle_teleop_key.
You learned how to use ros2 node list to discover active node names and ros2 node info to introspect a single node. These tools are vital to understanding the flow of data in a complex, real-world robot system.
IV Understanding topics¶
Goal: Use rqt_graph and command line tools to introspect ROS 2 topics.
Background¶
ROS 2 breaks complex systems down into many modular nodes. Topics are a vital element of the ROS graph that act as a bus for nodes to exchange messages.
A node may publish data to any number of topics and simultaneously have subscriptions to any number of topics.
Topics are one of the main ways in which data is moved between nodes and therefore between different parts of the system.
Pre-requisites¶
The previous tutorial provides some useful background information on nodes that is built upon here.
As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 Setup
By now you should be comfortable starting up turtlesim.
Open a new terminal and run:
Open another new terminal and run:
Recall from the previous tutorial that the names of these nodes are /turtlesim and /teleop_turtle by default.rqt_graph
Throughout this tutorial, we will use rqt_graph to visualize the changing nodes and topics, as well as the connections between them.
The turtlesim tutorial tells you how to install rqt and all its plugins, including rqt_graph.
To run rqt_graph, open a new terminal and enter the command:
You can also open rqt_graph by opening rqt and selecting Plugins > Introspection > Node Graph.
You should see the above nodes and topic, as well as two actions around the periphery of the graph (let’s ignore those for now). If you hover your mouse over the topic in the center, you’ll see the color highlighting like in the image above.
The graph is depicting how the /turtlesim node and the /teleop_turtle node are communicating with each other over a topic. The /teleop_turtle node is publishing data (the keystrokes you enter to move the turtle around) to the /turtle1/cmd_vel topic, and the /turtlesim node is subscribed to that topic to receive the data.
The highlighting feature of rqt_graph is very helpful when examining more complex systems with many nodes and topics connected in many different ways.
rqt_graph is a graphical introspection tool. Now we’ll look at some command line tools for introspecting topics.
3 ros2 topic list
Running the ros2 topic list command in a new terminal will return a list of all the topics currently active in the system:
ros2 topic list -t will return the same list of topics, this time with the topic type appended in brackets:/parameter_events [rcl_interfaces/msg/ParameterEvent]
/rosout [rcl_interfaces/msg/Log]
/turtle1/cmd_vel [geometry_msgs/msg/Twist]
/turtle1/color_sensor [turtlesim/msg/Color]
/turtle1/pose [turtlesim/msg/Pose]
If you’re wondering where all these topics are in rqt_graph, you can uncheck all the boxes under Hide:
For now, though, leave those options checked to avoid confusion.
ros2 topic echo
To see the data being published on a topic, use:
Since we know that /teleop_turtle publishes data to /turtlesim over the /turtle1/cmd_vel topic, let’s use echo to introspect that topic:
At first, this command won’t return any data. That’s because it’s waiting for /teleop_turtle to publish something.Return to the terminal where turtle_teleop_key is running and use the arrows to move the turtle around. Watch the terminal where your echo is running at the same time, and you’ll see position data being published for every movement you make:
/_ros2cli_26646 is the node created by the echo command we just ran (the number might be different). Now you can see that the publisher is publishing data over the cmd_vel topic, and two subscribers are subscribed to it.
ros2 topic info

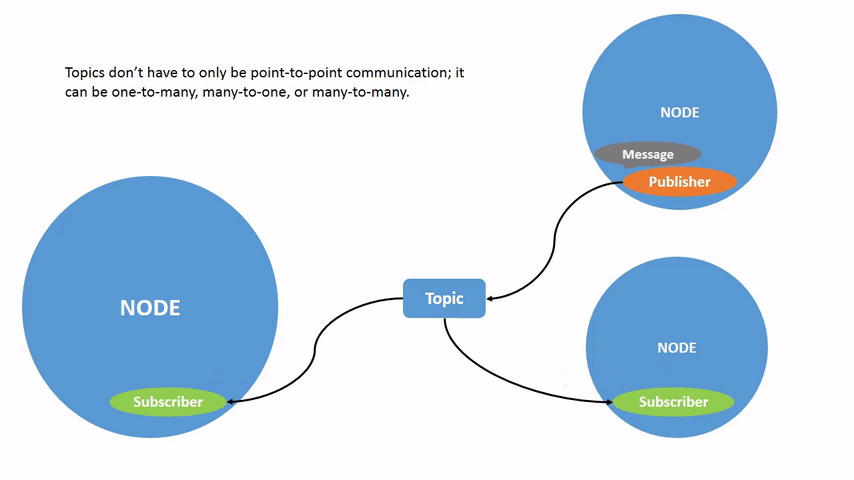

Topics don’t have to only be one-to-one communication; they can be one-to-many, many-to-one, or many-to-many.
Another way to look at this is running:
Which will return:
6 ros2 interface show
Nodes send data over topics using messages. Publishers and subscribers must send and receive the same type of message to communicate.
The topic types we saw earlier after running ros2 topic list -t let us know what message type is used on each topic. Recall that the cmd_vel topic has the type:
This means that in the package geometry_msgs there is a msg called Twist.
Now we can run ros2 interface show
# This expresses velocity in free space broken into its linear and angular parts.
Vector3 linear
float64 x
float64 y
float64 z
Vector3 angular
float64 x
float64 y
float64 z
This tells you that the /turtlesim node is expecting a message with two vectors, linear and angular, of three elements each. If you recall the data we saw /teleop_turtle passing to /turtlesim with the echo command, it’s in the same structure:
7 ros2 topic pub
Now that you have the message structure, you can publish data to a topic directly from the command line using:
The 'It’s important to note that this argument needs to be input in YAML syntax. Input the full command like so:
ros2 topic pub --once /turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 1.8}}"
You will see the following output in the terminal:
publisher: beginning loop
publishing #1: geometry_msgs.msg.Twist(linear=geometry_msgs.msg.Vector3(x=2.0, y=0.0, z=0.0), angular=geometry_msgs.msg.Vector3(x=0.0, y=0.0, z=1.8))
The turtle (and commonly the real robots which it is meant to emulate) require a steady stream of commands to operate continuously. So, to get the turtle to keep moving, you can run:
ros2 topic pub --rate 1 /turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 1.8}}"
You can refresh rqt_graph to see what’s happening graphically. You will see that the ros2 topic pub ... node (/_ros2cli_30358) is publishing over the /turtle1/cmd_vel topic, which is being received by both the ros2 topic echo ... node (/_ros2cli_26646) and the /turtlesim node now.
Finally, you can run echo on the pose topic and recheck rqt_graph:
You can see that the /turtlesim node is also publishing to the pose topic, which the new echo node has subscribed to.When publishing messages with timestamps, pub has two methods to automatically fill them out with the current time. For messages with a std_msgs/msg/Header, the header field can be set to auto to fill out the stamp field.
ros2 topic pub /pose geometry_msgs/msg/PoseStamped '{header: "auto", pose: {position: {x: 1.0, y: 2.0, z: 3.0}}}'
ros2 topic pub /reference sensor_msgs/msg/TimeReference '{header: "auto", time_ref: "now", source: "dumy"}'
8 ros2 topic hz
For one last introspection on this process, you can view the rate at which data is published using:
It will return data on the rate at which the /turtlesim node is publishing data to the pose topic. Recall that you set the rate of turtle1/cmd_vel to publish at a steady 1 Hz using ros2 topic pub --rate 1. If you run the above command with turtle1/cmd_vel instead of turtle1/pose, you will see an average reflecting that rate.9 Clean up
At this point you’ll have a lot of nodes running. Don’t forget to stop them by entering Ctrl+C in each terminal.
Summary¶

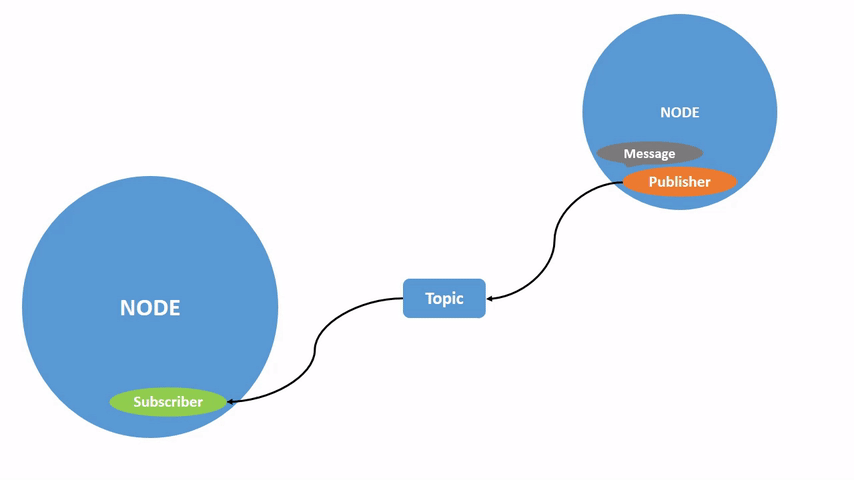

Nodes publish information over topics, which allows any number of other nodes to subscribe to and access that information. In this tutorial you examined the connections between several nodes over topics using rqt_graph and command line tools. You should now have a good idea of how data moves around a ROS 2 system.
V Understanding services¶
Goal: Learn about services in ROS 2 using command line tools.
Background¶

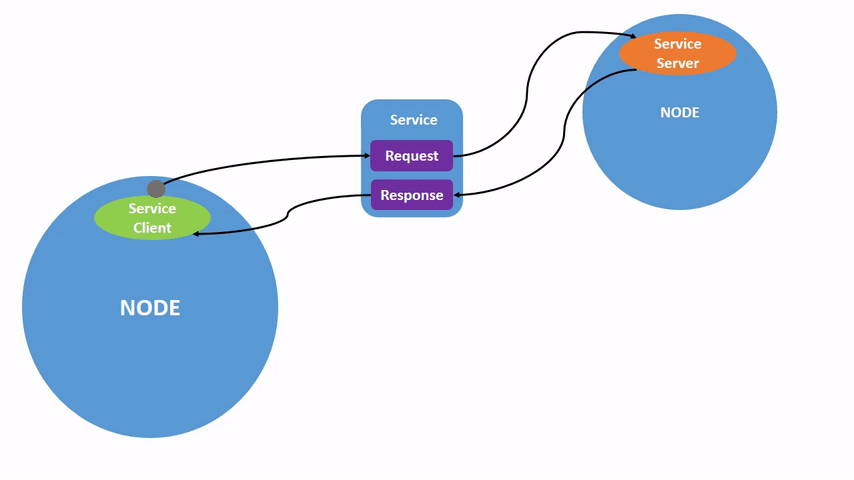

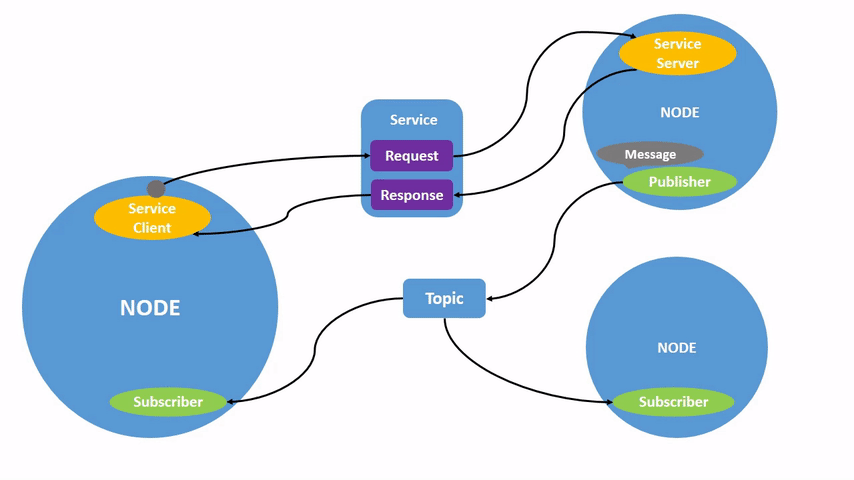

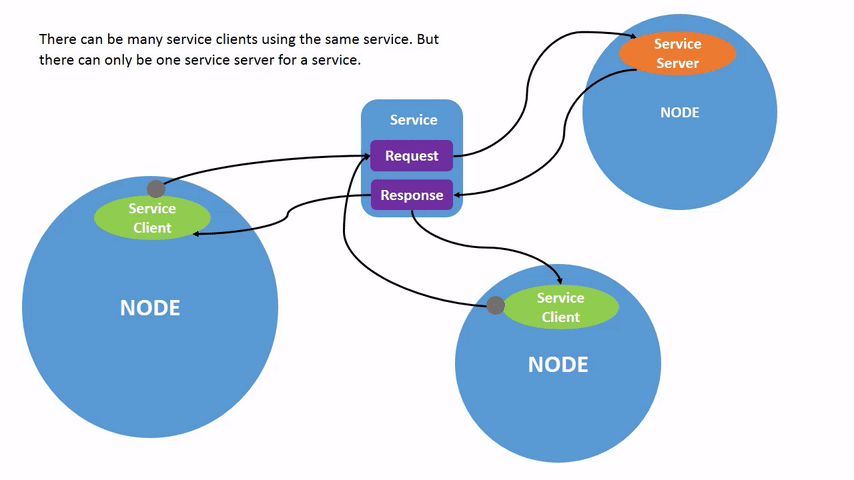

Services are another method of communication for nodes in the ROS graph. Services are based on a call-and-response model versus the publisher-subscriber model of topics. While topics allow nodes to subscribe to data streams and get continual updates, services only provide data when they are specifically called by a client.
Prerequisites¶
Some concepts mentioned in this tutorial, like Nodes and Topics, were covered in previous tutorials in the series.
You will need the turtlesim package.
As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 Setup¶
Start up the two turtlesim nodes, /turtlesim and /teleop_turtle.
Open a new terminal and run:
Open another terminal and run:
2 ros2 service list¶
Running the ros2 service list command in a new terminal will return a list of all the services currently active in the system:
you will see the following output:/clear
/kill
/reset
/spawn
/teleop_turtle/describe_parameters
/teleop_turtle/get_parameter_types
/teleop_turtle/get_parameters
/teleop_turtle/list_parameters
/teleop_turtle/set_parameters
/teleop_turtle/set_parameters_atomically
/turtle1/set_pen
/turtle1/teleport_absolute
/turtle1/teleport_relative
/turtlesim/describe_parameters
/turtlesim/get_parameter_types
/turtlesim/get_parameters
/turtlesim/list_parameters
/turtlesim/set_parameters
/turtlesim/set_parameters_atomically
For now, let’s focus on the turtlesim-specific services, /clear, /kill, /reset, /spawn, /turtle1/set_pen, /turtle1/teleport_absolute, and /turtle1/teleport_relative. You may recall interacting with some of these services using rqt in the Use turtlesim, ros2, and rqt tutorial.
3 ros2 service type¶
Services have types that describe how the request and response data of a service is structured. Service types are defined similarly to topic types, except service types have two parts: one message for the request and another for the response.
To find out the type of a service, use the command:
Let’s take a look at turtlesim’s /clear service. In a new terminal, enter the command:
Which should return:
The Empty type means the service call sends no data when making a request and receives no data when receiving a response.
[ros2 service list -t] To see the types of all the active services at the same time, you can append the --show-types option, abbreviated as -t, to the list command:
which will return:/clear [std_srvs/srv/Empty]
/kill [turtlesim/srv/Kill]
/reset [std_srvs/srv/Empty]
/spawn [turtlesim/srv/Spawn]
...
/turtle1/set_pen [turtlesim/srv/SetPen]
/turtle1/teleport_absolute [turtlesim/srv/TeleportAbsolute]
/turtle1/teleport_relative [turtlesim/srv/TeleportRelative]
...
4 ros2 service find¶
If you want to find all the services of a specific type, you can use the command:
For example, you can find all the Empty typed services like this: Which will return:5 ros2 interface show¶
You can call services from the command line, but first you need to know the structure of the input arguments.
Try this on the /clear service’s type, Empty:
Which will return:
The --- separates the request structure (above) from the response structure (below). But, as you learned earlier, the Empty type doesn’t send or receive any data. So, naturally, its structure is blank.
Let’s introspect a service with a type that sends and receives data, like /spawn. From the results of ros2 service list -t, we know /spawn’s type is turtlesim/srv/Spawn.
To see the request and response arguments of the /spawn service, run the command:
Which will return:
float32 x
float32 y
float32 theta
string name # Optional. A unique name will be created and returned if this is empty
---
string name
The information above the --- line tells us the arguments needed to call /spawn. x, y and theta determine the 2D pose of the spawned turtle, and name is clearly optional.
The information below the line isn’t something you need to know in this case, but it can help you understand the data type of the response you get from the call.
6 ros2 service call¶
Now that you know what a service type is, how to find a service’s type, and how to find the structure of that type’s arguments, you can call a service using:
The
Now let’s spawn a new turtle by calling /spawn and setting arguments. Input
Enter the command:
You will get this method-style view of what’s happening, and then the service response:requester: making request: turtlesim.srv.Spawn_Request(x=2.0, y=2.0, theta=0.2, name='')
response:
turtlesim.srv.Spawn_Response(name='turtle2')
Summary¶
Nodes can communicate using services in ROS 2. Unlike a topic - a one way communication pattern where a node publishes information that can be consumed by one or more subscribers - a service is a request/response pattern where a client makes a request to a node providing the service and the service processes the request and generates a response.
You generally don’t want to use a service for continuous calls; topics or even actions would be better suited.
In this tutorial you used command line tools to identify, introspect, and call services.
VI Understanding parameters¶
Goal: Learn how to get, set, save and reload parameters in ROS 2.
Background¶
A parameter is a configuration value of a node. You can think of parameters as node settings. A node can store parameters as integers, floats, booleans, strings, and lists. In ROS 2, each node maintains its own parameters. For more background on parameters, please see the concept document.
Prerequisites¶
This tutorial uses the turtlesim package. As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 Setup¶
Start up the two turtlesim nodes, /turtlesim and /teleop_turtle.
Open a new terminal and run:
Open another terminal and run:
2 ros2 param list¶
To see the parameters belonging to your nodes, open a new terminal and enter the command:
You will see the node namespaces, /teleop_turtle and /turtlesim, followed by each node’s parameters:
/teleop_turtle:
qos_overrides./parameter_events.publisher.depth
qos_overrides./parameter_events.publisher.durability
qos_overrides./parameter_events.publisher.history
qos_overrides./parameter_events.publisher.reliability
scale_angular
scale_linear
use_sim_time
/turtlesim:
background_b
background_g
background_r
qos_overrides./parameter_events.publisher.depth
qos_overrides./parameter_events.publisher.durability
qos_overrides./parameter_events.publisher.history
qos_overrides./parameter_events.publisher.reliability
use_sim_time
Every node has the parameter use_sim_time; it’s not unique to turtlesim.
Based on their names, it looks like /turtlesim’s parameters determine the background color of the turtlesim window using RGB color values.
To determine a parameter’s type, you can use ros2 param get.
3 ros2 param get¶
To display the type and current value of a parameter, use the command:
Let’s find out the current value of /turtlesim’s parameter background_g: Which will return the value: Now you know background_g holds an integer value.If you run the same command on background_r and background_b, you will get the values 69 and 255, respectively.
4 ros2 param set¶
To change a parameter’s value at runtime, use the command:
Let’s change /turtlesim’s background color: Your terminal should return the message: And the background of your turtlesim window should change colorsSetting parameters with the set command will only change them in your current session, not permanently. However, you can save your settings and reload them the next time you start a node.
5 ros2 param dump¶
You can view all of a node’s current parameter values by using the command:
The command prints to the standard output (stdout) by default but you can also redirect the parameter values into a file to save them for later. To save your current configuration of /turtlesim’s parameters into the file turtlesim.yaml, enter the command:
You will find a new file in the current working directory your shell is running in. If you open this file, you’ll see the following content:
/turtlesim:
ros__parameters:
background_b: 255
background_g: 86
background_r: 150
qos_overrides:
/parameter_events:
publisher:
depth: 1000
durability: volatile
history: keep_last
reliability: reliable
use_sim_time: false
Dumping parameters comes in handy if you want to reload the node with the same parameters in the future.
6 ros2 param load¶
You can load parameters from a file to a currently running node using the command:
To load the turtlesim.yaml file generated with ros2 param dump into /turtlesim node’s parameters, enter the command:
Your terminal will return the message:
Set parameter background_b successful
Set parameter background_g successful
Set parameter background_r successful
Set parameter qos_overrides./parameter_events.publisher.depth failed: parameter 'qos_overrides./parameter_events.publisher.depth' cannot be set because it is read-only
Set parameter qos_overrides./parameter_events.publisher.durability failed: parameter 'qos_overrides./parameter_events.publisher.durability' cannot be set because it is read-only
Set parameter qos_overrides./parameter_events.publisher.history failed: parameter 'qos_overrides./parameter_events.publisher.history' cannot be set because it is read-only
Set parameter qos_overrides./parameter_events.publisher.reliability failed: parameter 'qos_overrides./parameter_events.publisher.reliability' cannot be set because it is read-only
Set parameter use_sim_time successful
Note
Read-only parameters can only be modified at startup and not afterwards, that is why there are some warnings for the “qos_overrides” parameters.
7 Load parameters on node startup¶
To start the same node using your saved parameter values, use:
This is the same command you always use to start turtlesim, with the added flags --ros-args and --params-file, followed by the file you want to load.
Stop your running turtlesim node, and try reloading it with your saved parameters, using:
The turtlesim window should appear as usual, but with the purple background you set earlier.
Note
When a parameter file is used at node startup, all parameters, including the read-only ones, will be updated.
Summary¶
Nodes have parameters to define their default configuration values. You can get and set parameter values from the command line. You can also save the parameter settings to a file to reload them in a future session.
VII Understanding actions¶
Goal: Introspect actions in ROS 2.
Background¶

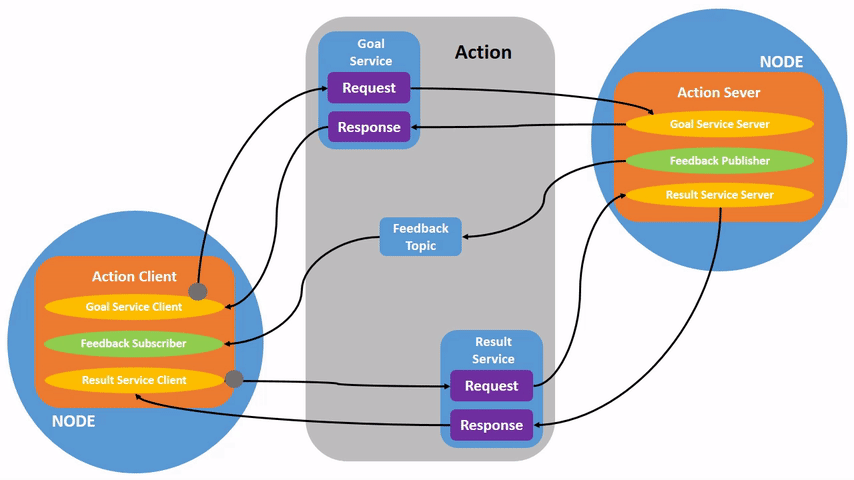

Actions are one of the communication types in ROS 2 and are intended for long running tasks. They consist of three parts: a goal, feedback, and a result.
Actions are built on topics and services. Their functionality is similar to services, except actions can be canceled. They also provide steady feedback, as opposed to services which return a single response.
Actions use a client-server model, similar to the publisher-subscriber model (described in the topics tutorial). An “action client” node sends a goal to an “action server” node that acknowledges the goal and returns a stream of feedback and a result.
Prerequisites¶
This tutorial builds off concepts, like nodes and topics, covered in previous tutorials.
This tutorial uses the turtlesim package.
As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 Setup¶
Start up the two turtlesim nodes, /turtlesim and /teleop_turtle.
Open a new terminal and run:
Open another terminal and run:
2 Use actions¶
When you launch the /teleop_turtle node, you will see the following message in your terminal:
Use arrow keys to move the turtle.
Use G|B|V|C|D|E|R|T keys to rotate to absolute orientations. 'F' to cancel a rotation.
Let’s focus on the second line, which corresponds to an action. (The first instruction corresponds to the “cmd_vel” topic, discussed previously in the topics tutorial.)
Notice that the letter keys G|B|V|C|D|E|R|T form a “box” around the F key on a US QWERTY keyboard (if you are not using a QWERTY keyboard, see this link to follow along). Each key’s position around F corresponds to that orientation in turtlesim. For example, the E will rotate the turtle’s orientation to the upper left corner.
Pay attention to the terminal where the /turtlesim node is running. Each time you press one of these keys, you are sending a goal to an action server that is part of the /turtlesim node. The goal is to rotate the turtle to face a particular direction. A message relaying the result of the goal should display once the turtle completes its rotation:
The F key will cancel a goal mid-execution.
Try pressing the C key, and then pressing the F key before the turtle can complete its rotation. In the terminal where the /turtlesim node is running, you will see the message:
Not only can the client-side (your input in the teleop) stop a goal, but the server-side (the /turtlesim node) can as well. When the server-side chooses to stop processing a goal, it is said to “abort” the goal.
Try hitting the D key, then the G key before the first rotation can complete. In the terminal where the /turtlesim node is running, you will see the message:
This action server chose to abort the first goal because it got a new one. It could have chosen something else, like reject the new goal or execute the second goal after the first one finished. Don’t assume every action server will choose to abort the current goal when it gets a new one.
3 ros2 node info¶
To see the list of actions a node provides, /turtlesim in this case, open a new terminal and run the command:
Which will return a list of /turtlesim’s subscribers, publishers, services, action servers and action clients:
/turtlesim
Subscribers:
/parameter_events: rcl_interfaces/msg/ParameterEvent
/turtle1/cmd_vel: geometry_msgs/msg/Twist
Publishers:
/parameter_events: rcl_interfaces/msg/ParameterEvent
/rosout: rcl_interfaces/msg/Log
/turtle1/color_sensor: turtlesim/msg/Color
/turtle1/pose: turtlesim/msg/Pose
Service Servers:
/clear: std_srvs/srv/Empty
/kill: turtlesim/srv/Kill
/reset: std_srvs/srv/Empty
/spawn: turtlesim/srv/Spawn
/turtle1/set_pen: turtlesim/srv/SetPen
/turtle1/teleport_absolute: turtlesim/srv/TeleportAbsolute
/turtle1/teleport_relative: turtlesim/srv/TeleportRelative
/turtlesim/describe_parameters: rcl_interfaces/srv/DescribeParameters
/turtlesim/get_parameter_types: rcl_interfaces/srv/GetParameterTypes
/turtlesim/get_parameters: rcl_interfaces/srv/GetParameters
/turtlesim/list_parameters: rcl_interfaces/srv/ListParameters
/turtlesim/set_parameters: rcl_interfaces/srv/SetParameters
/turtlesim/set_parameters_atomically: rcl_interfaces/srv/SetParametersAtomically
Service Clients:
Action Servers:
/turtle1/rotate_absolute: turtlesim/action/RotateAbsolute
Action Clients:
Notice that the /turtle1/rotate_absolute action for /turtlesim is under Action Servers. This means /turtlesim responds to and provides feedback for the /turtle1/rotate_absolute action.
The /teleop_turtle node has the name /turtle1/rotate_absolute under Action Clients meaning that it sends goals for that action name. To see that, run:
Which will return:
/teleop_turtle
Subscribers:
/parameter_events: rcl_interfaces/msg/ParameterEvent
Publishers:
/parameter_events: rcl_interfaces/msg/ParameterEvent
/rosout: rcl_interfaces/msg/Log
/turtle1/cmd_vel: geometry_msgs/msg/Twist
Service Servers:
/teleop_turtle/describe_parameters: rcl_interfaces/srv/DescribeParameters
/teleop_turtle/get_parameter_types: rcl_interfaces/srv/GetParameterTypes
/teleop_turtle/get_parameters: rcl_interfaces/srv/GetParameters
/teleop_turtle/list_parameters: rcl_interfaces/srv/ListParameters
/teleop_turtle/set_parameters: rcl_interfaces/srv/SetParameters
/teleop_turtle/set_parameters_atomically: rcl_interfaces/srv/SetParametersAtomically
Service Clients:
Action Servers:
Action Clients:
/turtle1/rotate_absolute: turtlesim/action/RotateAbsolute
4 ros2 action list¶
To identify all the actions in the ROS graph, run the command:
Which will return:
This is the only action in the ROS graph right now. It controls the turtle’s rotation, as you saw earlier. You also already know that there is one action client (part of /teleop_turtle) and one action server (part of /turtlesim) for this action from using the ros2 node info
[ros2 action list -t]
Actions have types, similar to topics and services. To find /turtle1/rotate_absolute’s type, run the command:
Which will return:
In brackets to the right of each action name (in this case only /turtle1/rotate_absolute) is the action type, turtlesim/action/RotateAbsolute. You will need this when you want to execute an action from the command line or from code.
5 ros2 action info¶
You can further introspect the /turtle1/rotate_absolute action with the command:
Which will return
This tells us what we learned earlier from running ros2 node info on each node: The /teleop_turtle node has an action client and the /turtlesim node has an action server for the /turtle1/rotate_absolute action.
6 ros2 interface show¶
One more piece of information you will need before sending or executing an action goal yourself is the structure of the action type.
Recall that you identified /turtle1/rotate_absolute’s type when running the command ros2 action list -t. Enter the following command with the action type in your terminal:
Which will return:
The desired heading in radians
float32 theta
---
The angular displacement in radians to the starting position
float32 delta
---
The remaining rotation in radians
float32 remaining
The section of this message above the first --- is the structure (data type and name) of the goal request. The next section is the structure of the result. The last section is the structure of the feedback.
7 ros2 action send_goal¶
Now let’s send an action goal from the command line with the following syntax:
Keep an eye on the turtlesim window, and enter the following command into your terminal:
You should see the turtle rotating, as well as the following message in your terminal:
Waiting for an action server to become available...
Sending goal:
theta: 1.57
Goal accepted with ID: f8db8f44410849eaa93d3feb747dd444
Result:
delta: -1.568000316619873
Goal finished with status: SUCCEEDED
All goals have a unique ID, shown in the return message. You can also see the result, a field with the name delta, which is the displacement to the starting position.
To see the feedback of this goal, add --feedback to the ros2 action send_goal command:
ros2 action send_goal /turtle1/rotate_absolute turtlesim/action/RotateAbsolute "{theta: -1.57}" --feedback
Your terminal will return the message:
Sending goal:
theta: -1.57
Goal accepted with ID: e6092c831f994afda92f0086f220da27
Feedback:
remaining: -3.1268222332000732
Feedback:
remaining: -3.1108222007751465
…
Result:
delta: 3.1200008392333984
Goal finished with status: SUCCEEDED
You will continue to receive feedback, the remaining radians, until the goal is complete.
Summary¶
Actions are like services that allow you to execute long running tasks, provide regular feedback, and are cancelable.
A robot system would likely use actions for navigation. An action goal could tell a robot to travel to a position. While the robot navigates to the position, it can send updates along the way (i.e. feedback), and then a final result message once it’s reached its destination.
Turtlesim has an action server that action clients can send goals to for rotating turtles. In this tutorial, you introspected that action, /turtle1/rotate_absolute, to get a better idea of what actions are and how they work.
VIII Using rqt_console to view logs¶
Goal: Get to know rqt_console, a tool for introspecting log messages.
Background¶
rqt_console is a GUI tool used to introspect log messages in ROS 2. Typically, log messages show up in your terminal. With rqt_console, you can collect those messages over time, view them closely and in a more organized manner, filter them, save them and even reload the saved files to introspect at a different time.
Nodes use logs to output messages concerning events and status in a variety of ways. Their content is usually informational, for the sake of the user.
Prerequisites¶
You will need rqt_console and turtlesim installed.
As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 Setup¶
Start rqt_console in a new terminal with the following command:

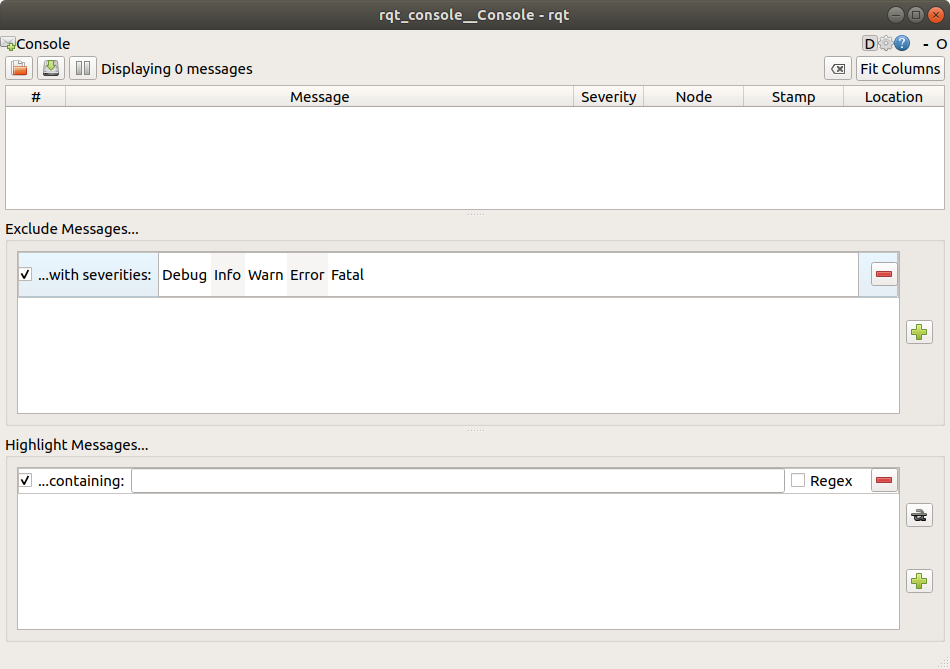

The rqt_console window will open:
The first section of the console is where log messages from your system will display.
In the middle you have the option to filter messages by excluding severity levels. You can also add more exclusion filters using the plus-sign button to the right.
The bottom section is for highlighting messages that include a string you input. You can add more filters to this section as well.
Now start turtlesim in a new terminal with the following command:
2 Messages on rqt_console¶
To produce log messages for rqt_console to display, let’s have the turtle run into the wall. In a new terminal, enter the ros2 topic pub command (discussed in detail in the topics tutorial) below:
ros2 topic pub -r 1 /turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0,y: 0.0,z: 0.0}}"

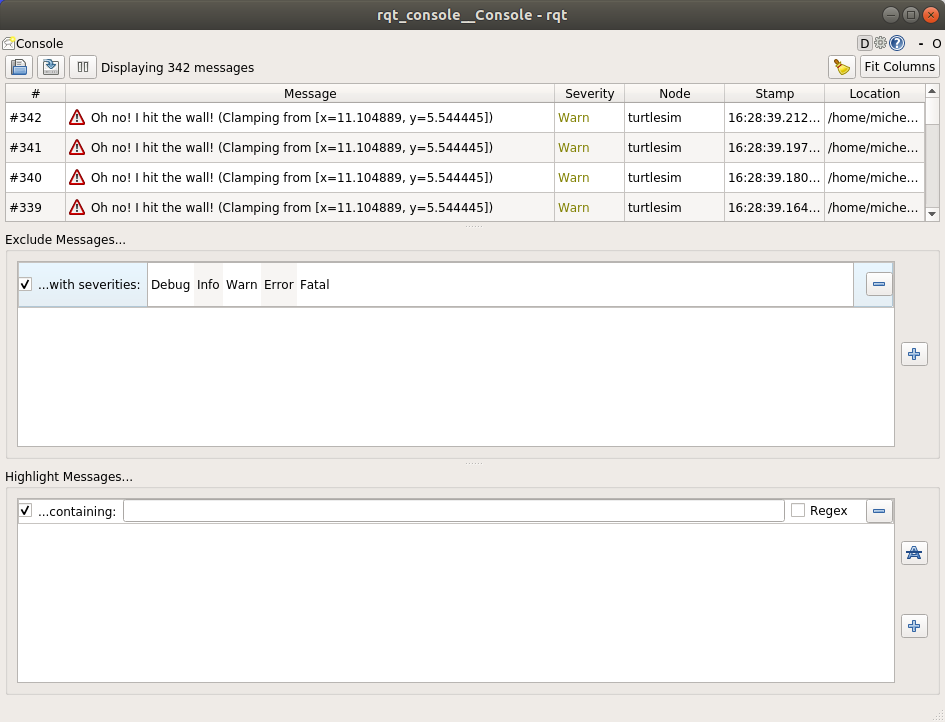

Since the above command is publishing the topic at a steady rate, the turtle is continuously running into the wall. In rqt_console you will see the same message with the Warn severity level displayed over and over, like so:
Press Ctrl+C in the terminal where you ran the ros2 topic pub command to stop your turtle from running into the wall.
3 Logger levels¶
ROS 2’s logger levels are ordered by severity:
There is no exact standard for what each level indicates, but it’s safe to assume that:
-
Fatal messages indicate the system is going to terminate to try to protect itself from detriment.
-
Error messages indicate significant issues that won’t necessarily damage the system, but are preventing it from functioning properly.
-
Warn messages indicate unexpected activity or non-ideal results that might represent a deeper issue, but don’t harm functionality outright.
-
Info messages indicate event and status updates that serve as a visual verification that the system is running as expected.
-
Debug messages detail the entire step-by-step process of the system execution.
The default level is Info. You will only see messages of the default severity level and more-severe levels.
Normally, only Debug messages are hidden because they’re the only level less severe than Info. For example, if you set the default level to Warn, you would only see messages of severity Warn, Error, and Fatal.
[Set the default logger level]
You can set the default logger level when you first run the /turtlesim node using remapping. Enter the following command in your terminal:
Now you won’t see the initial Info level messages that came up in the console last time you started turtlesim. That’s because Info messages are lower priority than the new default severity, Warn.
Summary¶
rqt_console can be very helpful if you need to closely examine the log messages from your system. You might want to examine log messages for any number of reasons, usually to find out where something went wrong and the series of events leading up to that.
IX Launching nodes¶
Goal: Use a command line tool to launch multiple nodes at once.
Background¶
In most of the introductory tutorials, you have been opening new terminals for every new node you run. As you create more complex systems with more and more nodes running simultaneously, opening terminals and reentering configuration details becomes tedious.
Launch files allow you to start up and configure a number of executables containing ROS 2 nodes simultaneously.
Running a single launch file with the ros2 launch·` command will start up your entire system - all nodes and their configurations - at once.
Prerequisites¶
Before starting these tutorials, install ROS 2 by following the instructions on the ROS 2 Installation page.
The commands used in this tutorial assume you followed the binary packages installation guide for your operating system (Debian packages for Linux). You can still follow along if you built from source, but the path to your setup files will likely be different. You also won’t be able to use the sudo apt install ros-<distro>-<package> command (used frequently in the beginner level tutorials) if you install from source.
If you are using Linux and are not already familiar with the shell, this tutorial will help.
Tasks¶
Running a Launch File¶
Open a new terminal and run:
This command will run the following launch file:
# turtlesim/launch/multisim.launch.py
from launch import LaunchDescription
import launch_ros.actions
def generate_launch_description():
return LaunchDescription([
launch_ros.actions.Node(
namespace= "turtlesim1", package='turtlesim', executable='turtlesim_node', output='screen'),
launch_ros.actions.Node(
namespace= "turtlesim2", package='turtlesim', executable='turtlesim_node', output='screen'),
])
Note
The launch file above is written in Python, but you can also use XML and YAML to create launch files. You can see a comparison of these different ROS 2 launch formats in Using Python, XML, and YAML for ROS 2 Launch Files.
This will run two turtlesim nodes
For now, don’t worry about the contents of this launch file. You can find more information on ROS 2 launch in the ROS 2 launch tutorials.
(Optional) Control the Turtlesim Nodes¶
Now that these nodes are running, you can control them like any other ROS 2 nodes. For example, you can make the turtles drive in opposite directions by opening up two additional terminals and running the following commands:
In the second terminal:
ros2 topic pub /turtlesim1/turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: 1.8}}"
In the third terminal:
ros2 topic pub /turtlesim2/turtle1/cmd_vel geometry_msgs/msg/Twist "{linear: {x: 2.0, y: 0.0, z: 0.0}, angular: {x: 0.0, y: 0.0, z: -1.8}}"
After running these commands, you should see something like the following:
Summary¶
The significance of what you’ve done so far is that you’ve run two turtlesim nodes with one command. Once you learn to write your own launch files, you’ll be able to run multiple nodes - and set up their configuration - in a similar way, with the ros2 launch command.
For more tutorials on ROS 2 launch files, see the main launch file tutorial page.
X Recording and playing back data¶
Background¶
ros2 bag is a command line tool for recording data published on topics in your system. It accumulates the data passed on any number of topics and saves it in a database. You can then replay the data to reproduce the results of your tests and experiments. Recording topics is also a great way to share your work and allow others to recreate it.
Prerequisites¶
You should have ros2 bag installed as a part of your regular ROS 2 setup.
If you need to install ROS 2, see the Installation instructions.
This tutorial talks about concepts covered in previous tutorials, like nodes and topics. It also uses the turtlesim package.
As always, don’t forget to source ROS 2 in every new terminal you open.
Tasks¶
1 Setup¶
You’ll be recording your keyboard input in the turtlesim system to save and replay later on, so begin by starting up the /turtlesim and /teleop_turtle nodes.
Open a new terminal and run:
Open another terminal and run:
Let’s also make a new directory to store our saved recordings, just as good practice:
=== “MacOS”
```bash
mkdir bag_files
cd bag_files
```
=== “Windows”
```bash
md bag_files
cd bag_files
```
2 Choose a topic¶
ros2 bag can only record data from published messages in topics. To see the list of your system’s topics, open a new terminal and run the command:
Which will return:
In the topics tutorial, you learned that the /turtle_teleop node publishes commands on the /turtle1/cmd_vel topic to make the turtle move in turtlesim.
To see the data that /turtle1/cmd_vel is publishing, run the command:
Nothing will show up at first because no data is being published by the teleop. Return to the terminal where you ran the teleop and select it so it’s active. Use the arrow keys to move the turtle around, and you will see data being published on the terminal running ros2 topic echo.
3 ros2 bag record¶
[Record a single topic] To record the data published to a topic use the command syntax:
Before running this command on your chosen topic, open a new terminal and move into the bag_files directory you created earlier, because the rosbag file will save in the directory where you run it.
Run the command:
You will see the following messages in the terminal (the date and time will be different):
[INFO] [rosbag2_storage]: Opened database 'rosbag2_2019_10_11-05_18_45'.
[INFO] [rosbag2_transport]: Listening for topics...
[INFO] [rosbag2_transport]: Subscribed to topic '/turtle1/cmd_vel'
[INFO] [rosbag2_transport]: All requested topics are subscribed. Stopping discovery...
Now ros2 bag is recording the data published on the /turtle1/cmd_vel topic. Return to the teleop terminal and move the turtle around again. The movements don’t matter, but try to make a recognizable pattern to see when you replay the data later.
Press Ctrl+C to stop recording.
The data will be accumulated in a new bag directory with a name in the pattern of rosbag2_year_month_day-hour_minute_second. This directory will contain a metadata.yaml along with the bag file in the recorded format.
[Record multiple topics] You can also record multiple topics, as well as change the name of the file ros2 bag saves to.
Run the following command:
The -o option allows you to choose a unique name for your bag file. The following string, in this case subset, is the file name.
To record more than one topic at a time, simply list each topic separated by a space.
You will see the following message, confirming that both topics are being recorded.
[INFO] [rosbag2_storage]: Opened database 'subset'.
[INFO] [rosbag2_transport]: Listening for topics...
[INFO] [rosbag2_transport]: Subscribed to topic '/turtle1/cmd_vel'
[INFO] [rosbag2_transport]: Subscribed to topic '/turtle1/pose'
[INFO] [rosbag2_transport]: All requested topics are subscribed. Stopping discovery...
You can move the turtle around and press Ctrl+C when you’re finished.
Note
There is another option you can add to the command, -a, which records all the topics on your system.
4 ros2 bag info¶
You can see details about your recording by running:
Running this command on the subset bag file will return a list of information on the file:
Files: subset.db3
Bag size: 228.5 KiB
Storage id: sqlite3
Duration: 48.47s
Start: Oct 11 2019 06:09:09.12 (1570799349.12)
End Oct 11 2019 06:09:57.60 (1570799397.60)
Messages: 3013
Topic information: Topic: /turtle1/cmd_vel | Type: geometry_msgs/msg/Twist | Count: 9 | Serialization Format: cdr
Topic: /turtle1/pose | Type: turtlesim/msg/Pose | Count: 3004 | Serialization Format: cdr
5 ros2 bag play¶
Before replaying the bag file, enter Ctrl+C in the terminal where the teleop is running. Then make sure your turtlesim window is visible so you can see the bag file in action.
Enter the command:
The terminal will return the message:
Your turtle will follow the same path you entered while recording (though not 100% exactly; turtlesim is sensitive to small changes in the system’s timing).
Because the subset file recorded the /turtle1/pose topic, the ros2 bag play command won’t quit for as long as you had turtlesim running, even if you weren’t moving.
This is because as long as the /turtlesim node is active, it publishes data on the /turtle1/pose topic at regular intervals. You may have noticed in the ros2 bag info example result above that the /turtle1/cmd_vel topic’s Count information was only 9; that’s how many times we pressed the arrow keys while recording.
Notice that /turtle1/pose has a Count value of over 3000; while we were recording, data was published on that topic 3000 times.
To get an idea of how often position data is published, you can run the command:
Summary¶
You can record data passed on topics in your ROS 2 system using the ros2 bag command. Whether you’re sharing your work with others or introspecting your own experiments, it’s a great tool to know about.
